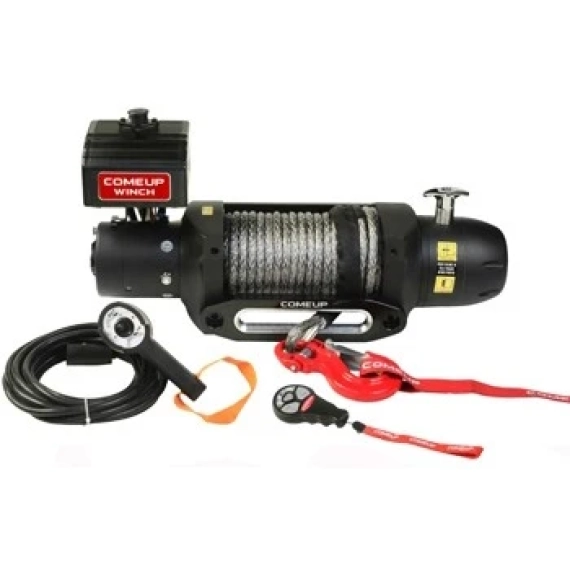

Merk at denne vinsjen leveres uten krybbe.
NB! Skal denne vinsjen monteres i en krybbe og er tiltenkt å være avtagbar trenger du en Come Up 175A Anderson Plug. Se etter produktet i relaterte varer.
- Part number: PN 295780
- Rated line pull: 5,670 kg / 12,500 lb single line
- Motor: 3,730 w / 5.0 hp 12V series wound
- Gear ratio: 3-stage planetary 225:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
- Control: Both built-in digital signal two way wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- Rope type: Synthetic rope
- Rope size: 11 mm x 25 m (7/16” x 82’)
- Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
- Mounting: Foot forward mounting only
- Finsh: Matte black powder-coated
- Winch weight (including rope) : 29.8 kg / 65.7 lb
- Gross weight : 40.8 kg / 90 lb
- Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9" x 8.2" x 16.9")
Line Speed and Amp. Draw (1st layer of rope on the drum):
|
Line Pull,
kg / lb |
Line Speed,
mpm / fpm |
Amp, Draw, A |
|
12V |
||
|
No load |
7.7 / 25.3 |
45 |
|
907 / 2,000 |
3.4 / 11.2 |
75 |
|
1,814 / 4,000 |
2.5 / 8.2 |
160 |
|
2,722 / 6,000 |
2.0 / 6.6 |
230 |
|
3,629 / 8,000 |
1.7 / 5.6 |
300 |
|
5,670 / 12,500 |
0.9 / 3.0 |
470 |
Line Pull and Rope Capacity:
|
Layer of Rope |
Pull by layer, kg / lb |
Total Rope on the Drum, m / ft |
|
1st |
5,670 / 12,500 |
4.8 / 15.7 |
|
2nd |
4,499 / 9,919 |
10.9 / 35.7 |
|
3rd |
3,729 / 8,221 |
18.5 / 60.7 |
|
4th |
3,184 / 7,020 |
25.0 / 82.0 |
