Merk at denne vinsjen leveres uten krybbe.
NB! Skal denne vinsjen monteres i en krybbe og er tiltenkt å være avtagbar trenger du en Come Up 175A Anderson Plug. Se etter produktet i relaterte varer.

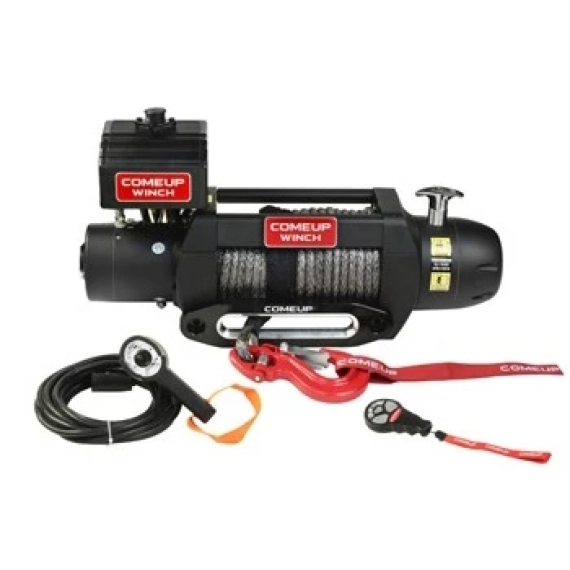

- Part number: PN 295850
- Rated line pull: 4,309 kg / 9,500 lb single line
- Motor: 3,730 w / 5.0 hp 12V series wound
- Gear ratio: 3-stage planetary 159:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
- Control: Both built-in digital signal two way wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- Rope type: Synthetic rope
- Rope size: 10 mm x 30.5 m (3/8” x 100’)
- Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
- Mounting : Foot forward or foot down mounting workable
- Finish : Matte black powder-coated
- Winch weight (including rope) : 28.5 kg / 62.8 lb
- Gross weight : 40 kg / 88 lb
- Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9" x 8.2" x 16.9")
Line Speed and Amp. Draw (1st layer of rope on the drum):
|
Line Pull,
kg / lb |
Line Speed,
mpm / fpm |
Amp, Draw, A |
|
12V |
||
|
No load |
14.8 / 48.6 |
60 |
|
907 / 2,000 |
4.8 / 15.7 |
115 |
|
1,814 / 4,000 |
3.6 / 11.8 |
210 |
|
2,722 / 6,000 |
2.8 / 9.2 |
245 |
|
3,629 / 8,000 |
2.3 / 7.6 |
280 |
|
4,309 / 9,500 |
2.2 / 7.2 |
380 |
Line Pull and Rope Capacity:
|
Layer of Rope |
Pull by layer, kg / lb |
Total Rope on the Drum, m / ft |
|
1st |
4,309 / 9,500 |
5.1 / 16.7 |
|
2nd |
3,472 / 7,655 |
11.7 / 38.4 |
|
3rd |
2,908 / 6,410 |
19.7 / 64.6 |
|
4th |
2,501 / 5,514 |
30.5 / 100 |
