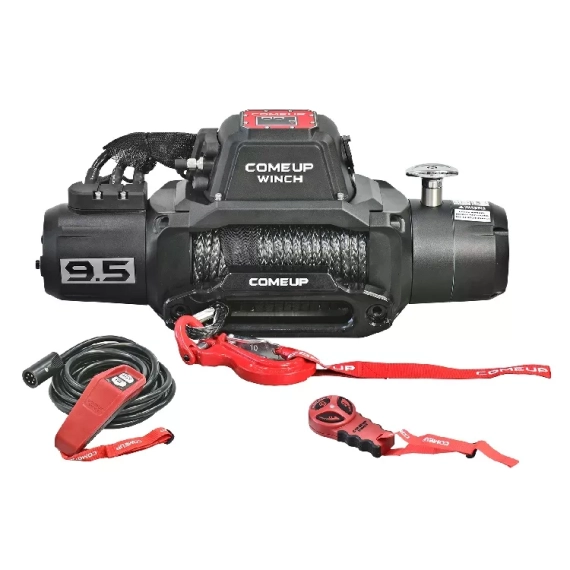

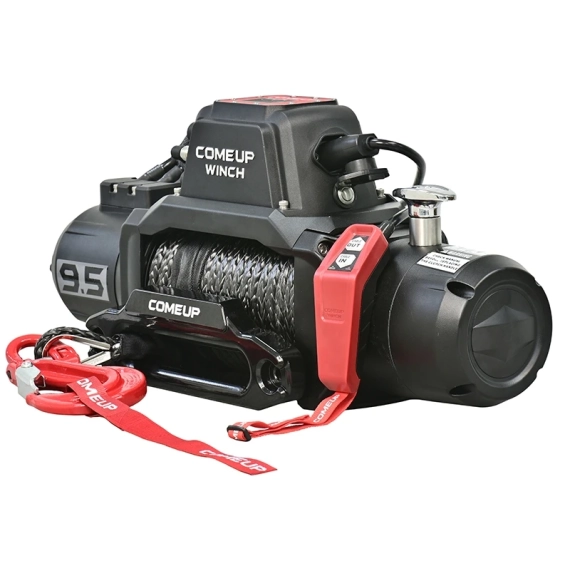

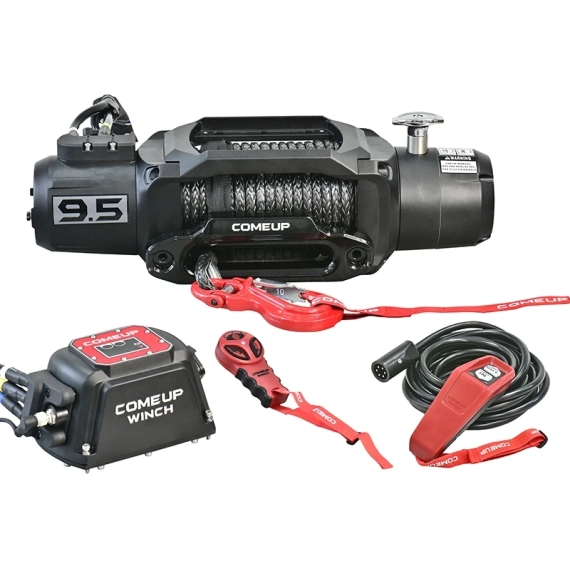

Come up Vinsj SOLO 9.5rs 12v

4.3 Tonnes Self-Recovery Winch

  • 12V DC severe duty winch rated at 9,500 lb pulling meets and exceeds your expectations.

  • Heavy duty series wound motor equipped with thermal protection switch alters.

  • Trendy design on winch body with new stylish control pack dedicated to provide excellent winching experience.

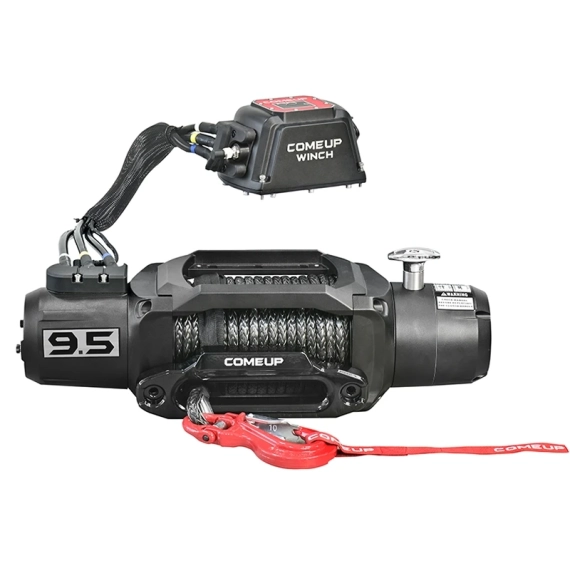

  • Convertible control pack plus winch external wiring cable connection design allows quick and convenient remote mounting options.

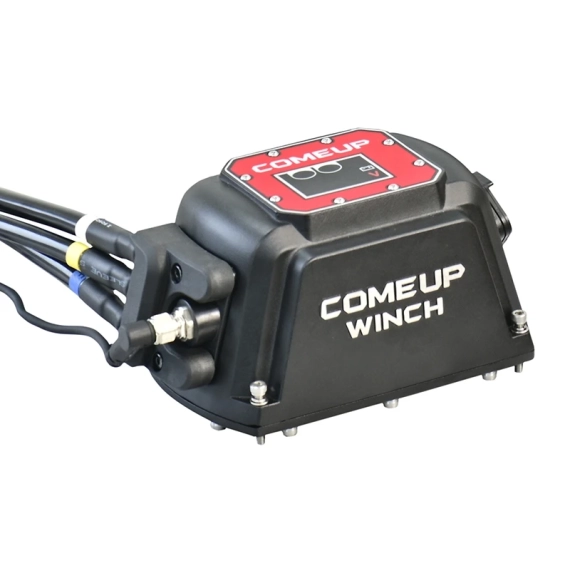

  • Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.

  • Newly designed wireless and wired controllers offer better holding and reliable operation.

  • Wired controller has magnet design, allowing it to put on idle vehicle body.

  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation.

  • 12-strand construction synthetic rope is coated to improve abrasion and has no water absorption.

  • The U.S., Germany, U.K., France, etc., patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.

  • Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.

  • Built-in radio control module includes functions:
    - On/off switch prevents the vehicle battery from draining when no use
    - Motor over-heating warning by LED indicators and beeper




Varenr: COM291200
kr 24.394,-
Velg produktalternativer
Velg komponenter
Legg i handlekurv
kr 24.394,-
ikke på lager (bestillingsvare)

  • Rated line pull: 4,309 kg / 9,500 lb single line

  • Line speed (1st layer): 14.8 mpm / 48.6 fpm 60 A at 12V no load 2.2 mpm / 7.2 fpm 380 A at 12V full load

  • Motor: 3,730 w / 5.0 hp 12V series wound

  • Gear ratio: 3-stage planetary 159:1

  • Clutch (freespooling): Rotating ring gear

  • Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)

  • Winch construction: Aluminum die cast housings with steel drum

  • Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)

  • Control: Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator

  • Rope type: Synthetic rope

  • Rope size: 10 mm x 30.5 m (3/8” x 100’)

  • Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)

  • Mounting : Foot forward or foot down mounting workable

  • Finish : Matte black powder-coated


NB! Strømforbruket øker betraktelig ved bruk av vinsj og vi anbefaler innstallasjon av dobbelt batteri om du skal vinjse mye.
